| Carbon-brush motor P199-80006 |
| OUTPUT:1W-50W(APPROX) |
| Automotive Products:Automotive trunk actuafor |
| Distinctive Features |
| 1:The drive motor is designed to be the compact sized motor for car gate lift applications. |
| 2:Connector and wireharness are attached. |
| 3:Design is optimized for High performance and compact size. |
| 4:Hall sensor is integrated and optional. |

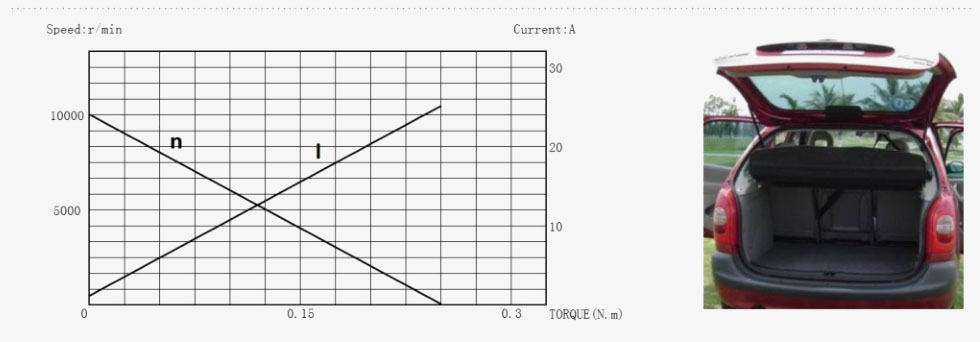

| Voltage | Noload | Onload | Stall | |||||
|
Operating range |
Nominal | Current | Speed | Torque | Current | Speed | Torque | Current |
| 9-15V | 12V | 2.5max | 10000 | 0.03 | 5.5max | 8500 | 0.25 | 30max |
UNIT:mm
WEIGHT:130G(APPROX)
