| Carbon-brush motor S699-80002 |
| 输出功率:1W-50W(APPROX) |
| 汽车传动产品:汽车座椅 |
| 典型特征 |
|
1:用于汽车座椅的紧凑型中小型电机 2:记忆功能可选 |

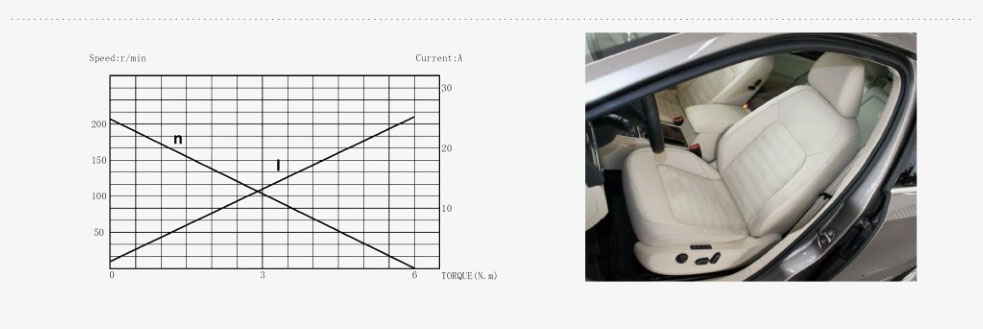

| Voltage | Noload | Onload | Stall | |||||
|
Operating range |
Nominal | Current | Speed | Torque | Current | Speed | Torque | Current |
| 9-15V | 12V | 2.5max | 210 | 1.2 | 10max | 170 | 6 | 25max |

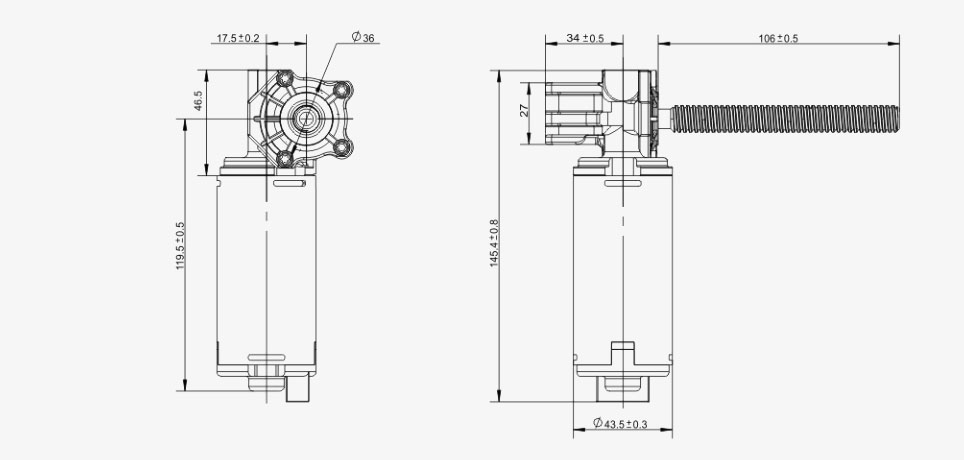

UNIT:mm
WEIGHT:630G(APPROX)
