| Carbon-brush motor P199-80004/5 |
| 输出功率:大约1W-50W(APPROX) |
| 汽车传动产品:汽车尾门开启 |
| 典型特征 |
| 1:用于汽车尾门开启的紧凑型中小型电机 |
| 2:带线束和连接器 |
| 3:独创的高性能和小尺寸设计 |
| 4:霍尔集成和带记忆功能可选 |

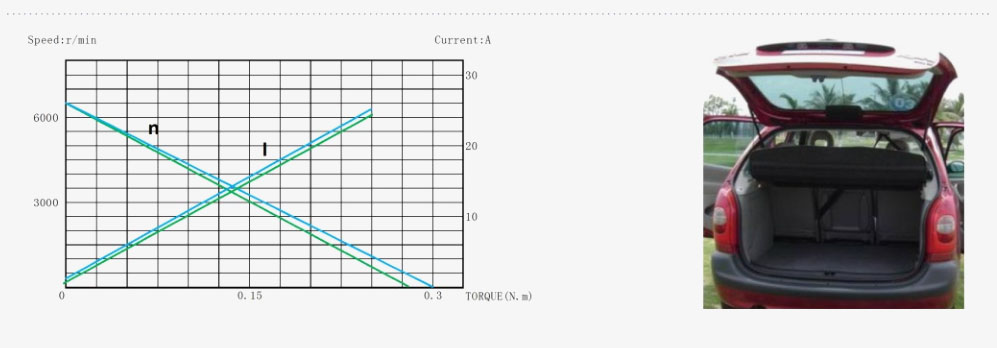

| Voltage | Noload | Onload | Stall | Length | ||||||
|
Operating range |
Nominal | Current | Speed | Torque | Current | Speed | Torque | Current | "L" | |
| 9-15V | 12V | 2.0/2.5max | 6500 | 0.04 | 5.0/5.5max | 4800 | 0.27/0.30 | 25/28max | 60/66 | |

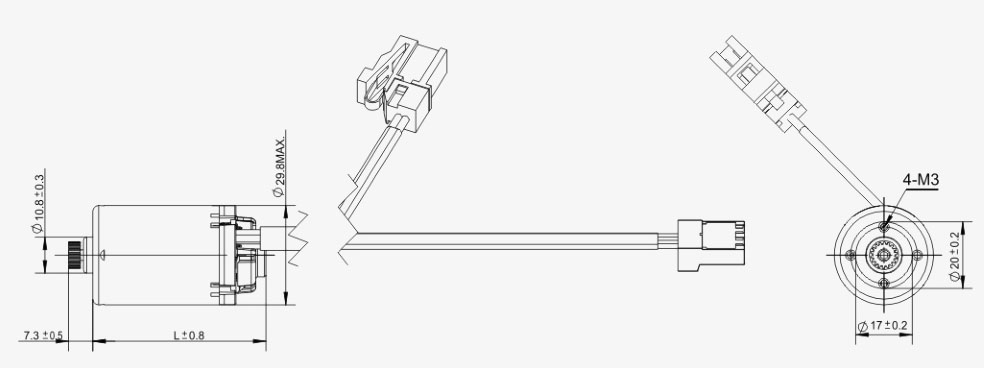

UNIT:mm
WEIGHT:390G(APPROX)
